10″ Android touch panel with Wi-Fi & Ethernet

10″ Android touch panel with Wi-Fi & Ethernet

This is a SystemView 10 inch touch panel with a slim and sleek profile for easy mounting.

  • Integrated bracket for in wall mounting and metal clips for metal door mounting
  • Equipped with bracket SH-Systemview10
  • Support multi-languages

10″ Android touch panel with Wi-Fi & Ethernet

Contact Us

Product Overview

The device is equipped with an advanced processor for smooth and high-speed performance. This android touch panel features a large capacitive touch screen for easy viewing.

A perfect (low-cost) solution for rugged monitoring in cabinets or as a graphics viewer for web servers.

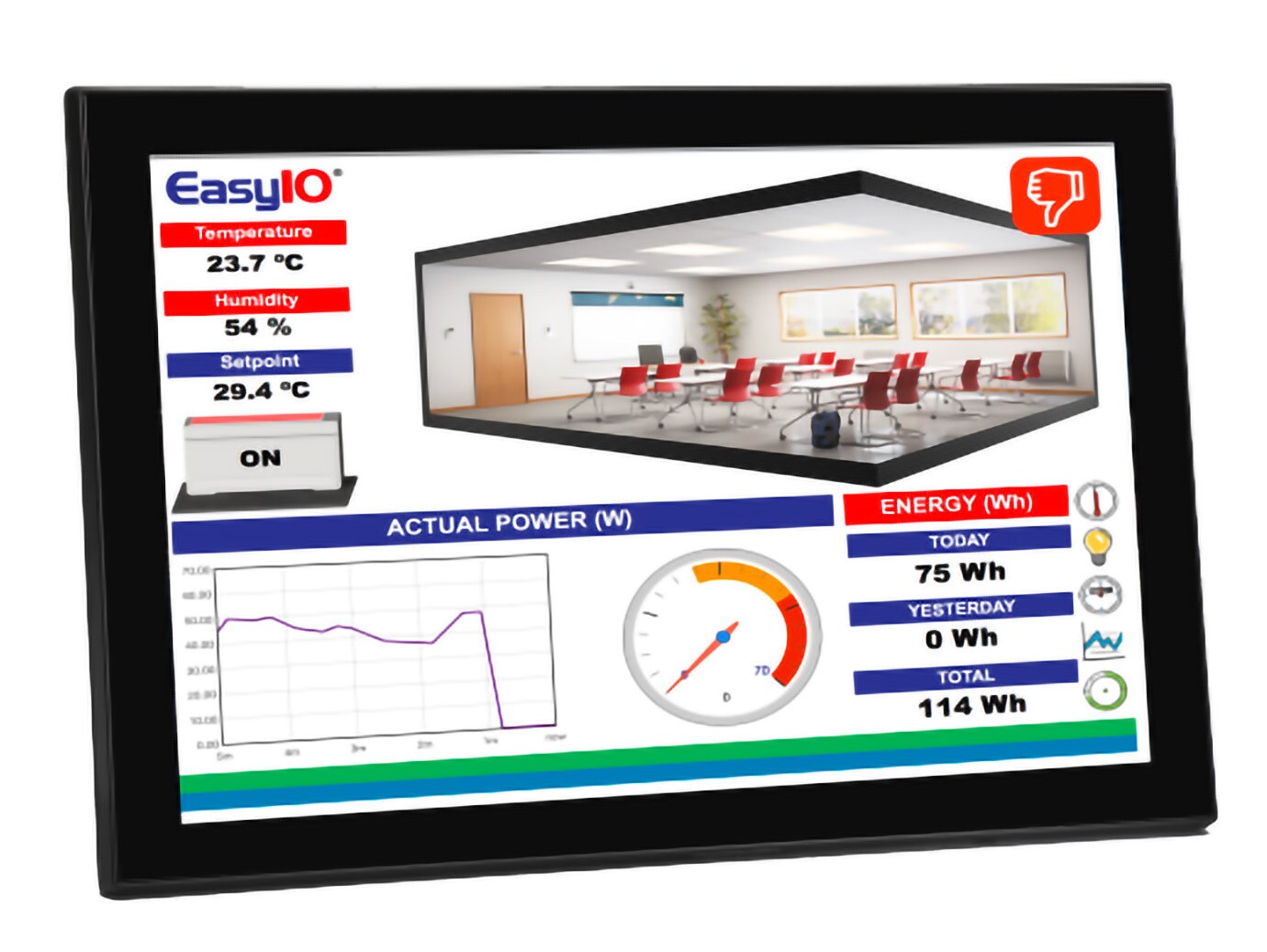

A screen showing a building management interface with a visual of a room layout, temperature and humidity readings

Features and Characteristics

  • Auto Run SystemView app when it is booted
  • 10.1 Inch IPS Display
  • Included Power Supply (12V/1500mA)
  • 2GB RAM
  • Integrated bracket for in wall mounting and metal clips for metal door mounting.
  • 8GB Nand Flash
  • Allwinner A83T processor
  • Google Android 6.0.1
  • 8-Core ARM Cortex A7 CPU, 1.2Ghz
  • WIFI
  • Ethernet RJ45 LAN Port


Access here your Technical Documentation

10 Android touch panel with Wi-Fi Ethernet Specifications

Explore the specifications.

VIEW

Technical Files

Unlock the technical files.

VIEW
